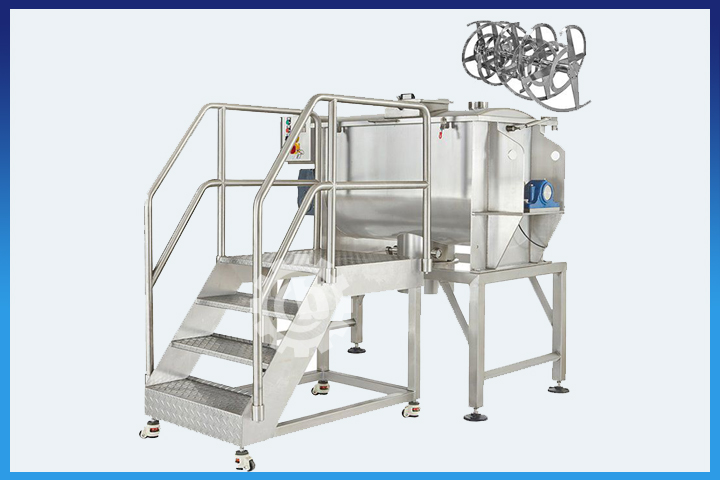

This spice powder mixing machine ribbon blender is widely used in the solid-solid (powder material) and solid-liquid (powder leaves material & fluidity material) mixing in the field of chemical industry, pharmacy, foodstuff industry, etc.
Introduction:

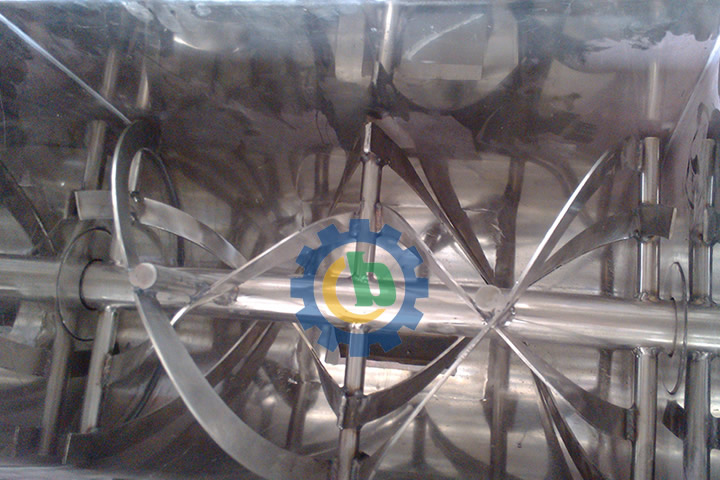

It is mainly comprised of mixing barrel, spiral ribbon and driven parts. The spiral ribbon is made of two layers. That is, the inner ribbon makes the material move outwards, while the external ribbon makes the material move inwards which forms a good circulation of material. Ribbon moves so circumferentially that the mixer could achieve fine mixing efficiency in a very short time.
Model |
Gross volume |
Load factor |
Dimension |
Power |
weight |
|
L |
|
mm (L*W*H) |
KW |
kg |
BRB-0.1 |
100 |
0.4-0.8 |
1190×740×770 |
3 |
330 |
BRB-0.3 |
300 |
0.4-0.8 |
2030×630×980 |
4 |
720 |
BRB-0.5 |
500 |
0.4-0.8 |
2320×730×1130 |
7.5 |
980 |
BRB-1 |
1000 |
0.4-0.8 |
2800×920×1320 |
11 |
1700 |
BRB-1.5 |
1500 |
0.4-0.8 |
3180×1020×1550 |
11 |
1800 |
BRB-2 |
2000 |
0.4-0.8 |
3310×1120×1640 |
15 |
2100 |
BRB-3 |
3000 |
0.4-0.8 |
3750×1290×1820 |
18.5 |
3000 |
BRB-4 |
4000 |
0.4-0.8 |
4220×1400×1990 |
22 |
3980 |
BRB-5 |
5000 |
0.4-0.8 |
4220×1500×2100 |
22 |
4620 |
BRB-6 |
6000 |
0.4-0.8 |
4700×1610×2260 |
30 |
6180 |
BRB-8 |
8000 |
0.4-0.8 |
4420×2150×2470 |
37 |
8200 |
BRB-10 |
10000 |
0.4-0.8 |
5520×2960×2720 |
45 |
8920 |
BRB-12 |
12000 |
0.4-0.8 |
5720×3010×2840 |
45 |
9520 |
BRB-15 |
15000 |
0.4-0.8 |
5840×3540×2940 |
55 |
9950 |
