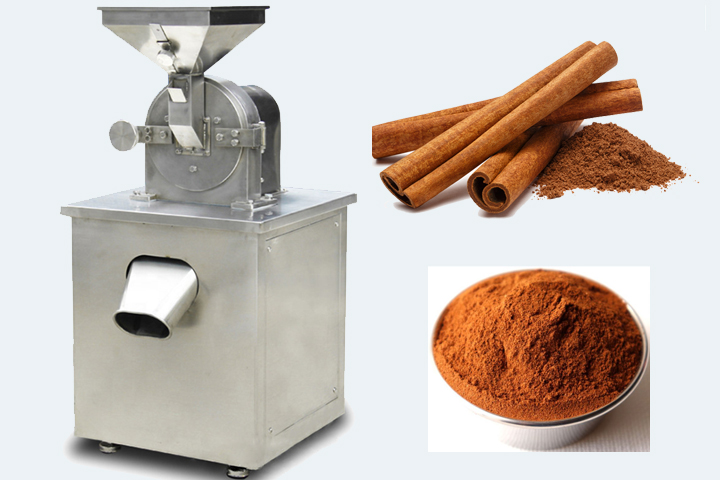

Automatic Cinnamon Powder Grinding Machine

  • Model: BMC
  • Capacity: 50-1000 Kg/h
  • Final Powder Size: 10-120 Mesh
  • Voltage: 380 V

We're here to help:  Easy ways to get the answers you need.

Share With:
  • Specifications

Multifunctional crusher named as hammer mill, drag mill, food mill, stainless crusher etc. With different expected sizes various customers different demands through changing the different screens, widely used in leechdom, food, industry etc.

Working Principle of Cinnamon Powder Grinding Machine:

The cinnamon powder can be directly discharged from the grinding chamber, and the cinnamon is pulverized and put into a bag to collect. The pulverized material is collected in the bag, and the air is discharged from the small hole of the bag, and the fine powder is not discharged. Therefore, it has the characteristics of no waste and no pollution. The thickness of the cinnamon powder can be adjusted by changing the mesh of different meshes.

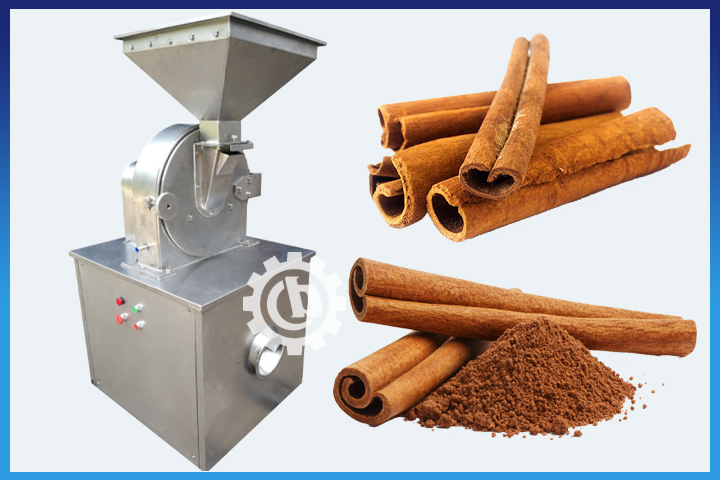

cinnamon-powder-grinder
Cinnamon Powder Grinding Machine Technical Parameter:

Model Capacity (kg/h) Fineness (mesh) Voltage (V/3P) Power (KW/HP) Dimension (mm) Weight (kg)
BMC180 10-50 10-120 380 2.2/3HP 500x500x1050 85
BMC200 30-120 10-120 380 4/5HP 600x600x1200 130
BMC300 60-200 10-120 380 5.5/7HP 750x650x1350 180
BMC400 80-300 10-120 380 7.5/10HP 750x700x1400 270
BMC500 100-500 10-120 380 11/15HP 800x850x1500 350
BMC600 300-1000 10-120 380 18.5/25HP 1000x1000x1900 550
