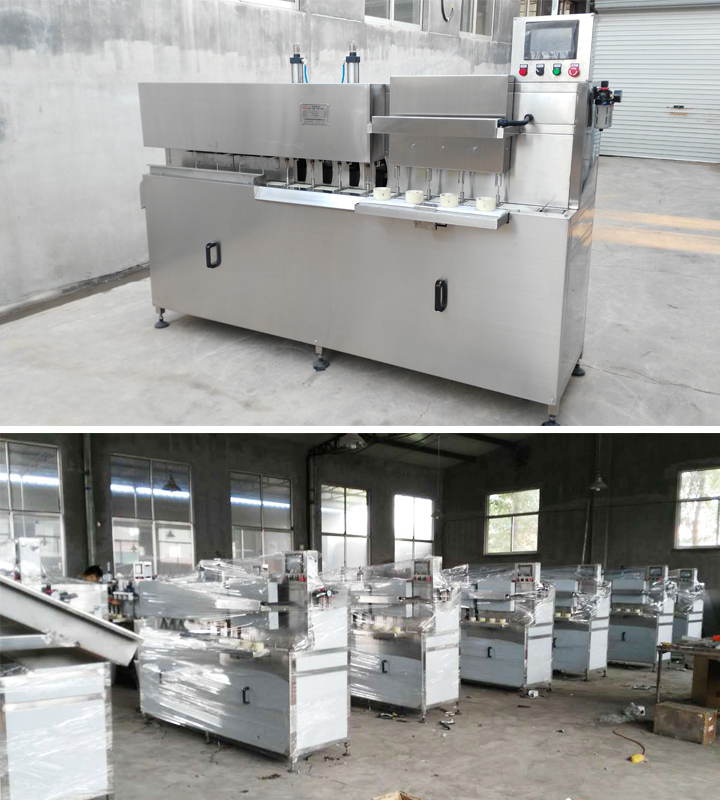

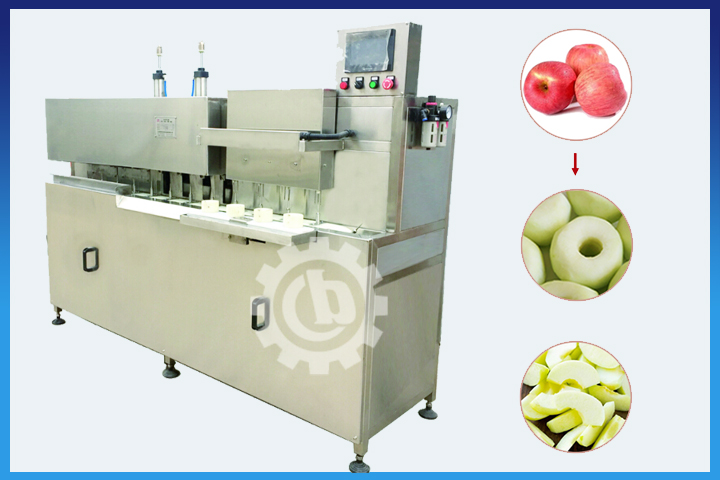

Apple Peeling Machine Introduction:
Apple peeling machine is using the mechanical principle of fruit peeling machine, controlled by PLC, can finish the peeling, coring, dividing movement, peeling knife can automatically close to fruit shape according to each apple change, peel thickness is adjustable, thus peeled fruit loss less, high utilization rate of fruit meat.
On the touch screen setting parameters and action, put the apple on the fruit bowl, then the machine can work automatically, one hour can peel apples around 3000 pieces per hour.
Apple Peeler Technique Parameters:
Capacity: 50 pieces/minute(Around 500kg/h)
Peeling thickness: 1.1-1.3mm(adjustable)
Apple diameter:65-110mm
Core remover diameter: 22mm(can customize)
Peeling clean rate: more than 95%
Voltage: 380V,50HZ,3 phase
Power: 1.3KW
Dimension: 2400*820*1680mm
Weight: 380kg
Air capacity: 0.3M3/minute
Divide pieces: according to customer
Machine material: plate is SUS304, square tube is SUS202,lifting knife sets is Aluminum alloy
Pneumatic system: AirTAC, Servo system is in Taiwan Delta,PLC is Japan Mitsubishi
