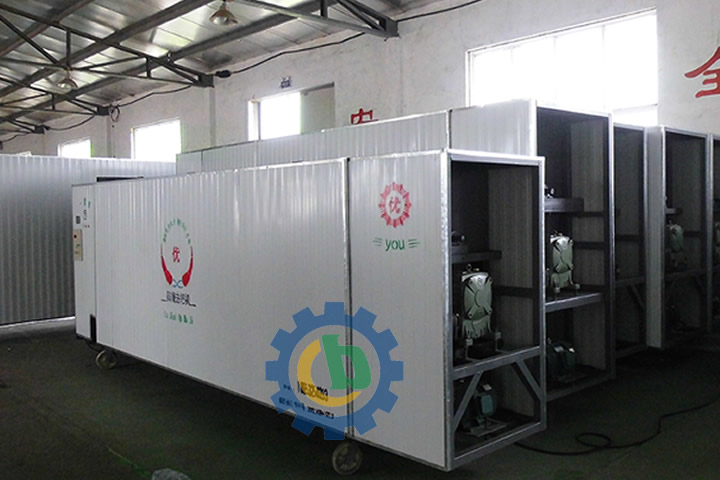

  • chili-destemming-machine

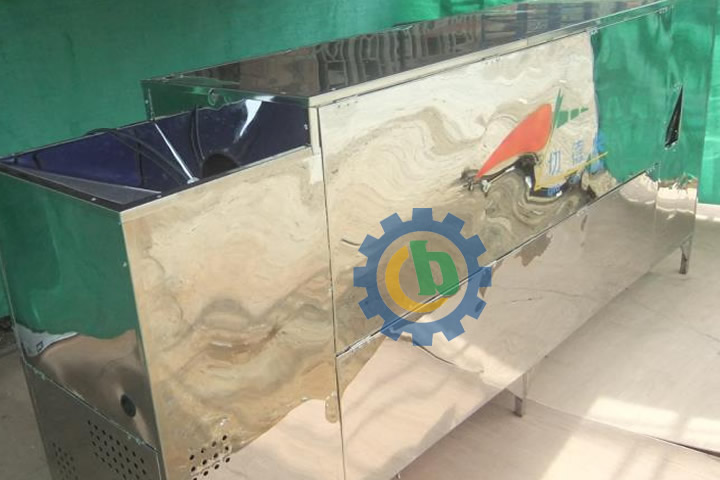

  • chili-destemming-machine-stainless-steel

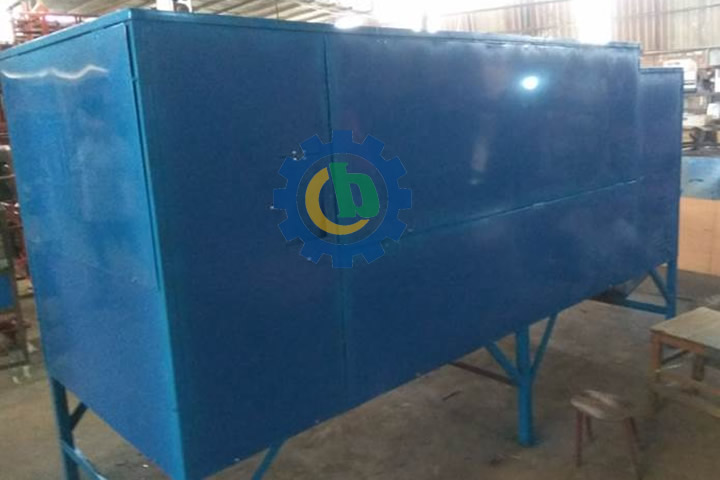

  • chili-stem-cutter-250kg-per-hour
  • chili-destemming-stem-diameter
  • chili-destemming-machine-inside

100-500kg/h Chili Destemming Machine

  • Model: BCHS-60--BCHS-500
  • Power: 3KW-8KW
  • Capacity: 60-500kg/h
  • Material: Carbon steel or stainless steel
  • Packing : Standard export plywood package
  • Delivery time: Within 20 days

We're here to help:  Easy ways to get the answers you need.

   get price
Share With:
  • Specifications

Brief Introduction:
Chili destemming machine is the automatic equipment for removing chili stem.This machine’s main features is fully automatic stem removing, high efficiency, high ratio of stem removing..

Working Principle:

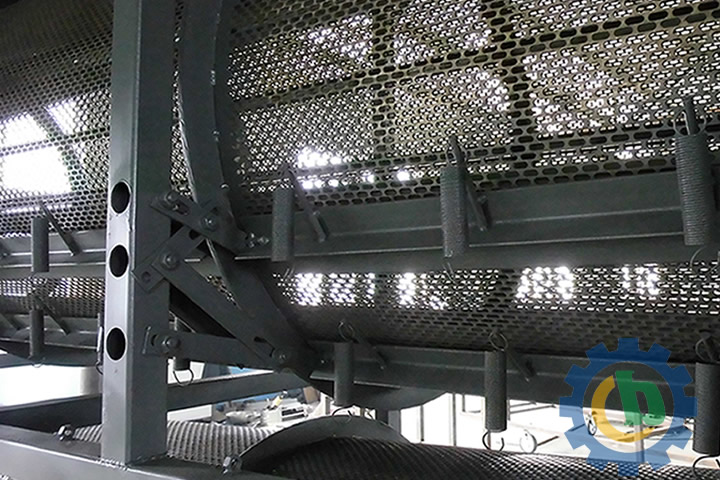

Chili destemming machine's working process: first by the workers or conveyors put into the feed hopper , chili slowly flow to the upper side of the drum , the drum slowly rotating driven by motor, In the drum contains three wavy curved blades , constantly stir the chili. Because chili center of gravity tend to tail , flip the tail down fall in the hole of the drum , following the roller rotation , chili to be attached to the roller cutter cut to complete the go to the process.
After falling to the underside of the drum by the square hole of the drum tail, repeat on the side of the drum to the process, cut rest of the chili not being removed stem, finally chili falling into a square hole in the underside of the drum discharge outlet for collection and packing.


Technical Parameters:

Item Capacity
(dry chili)		 Specifications
BCHS-60 60kg/h Dimension:2700*590*830mm
Weight:95kg
Power:3KW
BCHS-120 120kg/h Dimension:2810*590*1300mm
Weight:238kg
Power:3KW
BCHS-180 180kg/h Dimension:3810*590*1300mm
Weight:357kg
Power:4.4KW
BCHS-200 200kg/h Dimension:3810*680*1600mm
Weight:476kg
Power: 4.4KW
BCHS-250 250kg/h Dimension:2810*1100*1500mm
Weight:470kg
Power: 4.4KW
BCHS-350 350kg/h Dimension:5200*850*1800mm
Weight:800kg
Power:6KW
BCHS-400 400kg/h Dimension:5200*1000*2100mm
Weight:1000kg
Power:8KW
BCHS-500 500kg/h Dimension: 5200*1150*2250mm
Weight:1200kg
Power:8KW
